   Connessioni microfoniche



ADONIS  ALBRECHT
ALINCO CRT
ICOM INTEK
KENWOOD MIDLAND
PRESIDENT RANGER
YAESU







ALBRECHT



ALBRECHT AE5890/AE6891

  1. MIC BF
  2. RX
  3. TX PTT
  4. UP/DOWN
  5. MASSA
  6. +DC





ALINCO




ALINCO

DR-135DX (CB 27 MHZ)



  1. MIC BF
  2. UP/DOWN
  3. TX PTT
  4. NC
  5. MASSA
  6. NC

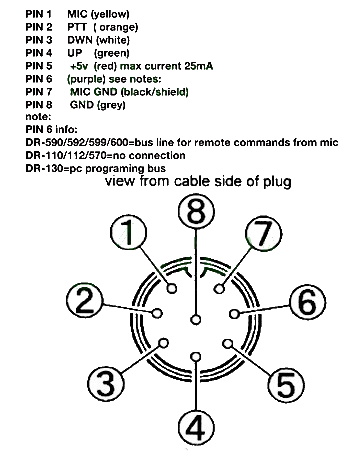

ALINCO

DX70-DX70T-DX77-DX701-DX707-DR110-DR112-DR119-DR135-DR-330-DR435-DR150E-DR150TE-DR235-DR-410-DR430-DR435-DR510-DR570-DR590-DR592T-DR599T-DR600T-DR610-DR620-DR635-DR1200-DRM03-DRM06-ALR22H-ALD24T-ALR22T-ALR72T


  1. MIC
  2. PTT
  3. DOWN
  4. UP
  5. + 5 VOLT (Max current 25 mAh) (+ 8 VOLT ALR-22/24)
  6. AUDIO OUT (remote DR150TE-DR590-DR592-DR599-DR600)
  7. MASSA MIC
  8. EARTH







ALINCO DR140-DR605 (Modular Plug)


  1. +5 VOLT
  2. DOWN
  3. N.C.
  4. PTT
  5. MASSA MIC
  6. MIC
  7. MASSA
  8. UP







ALINCO

22T/E.24E/T


  1. MIC
  2. PTT
  3. DOWN
  4. UP
  5. + 8 VOLT
  6. N/C
  7. MIC EARTH
  8. GROUND







ALINCO

EMS-14 / ADONIS AM-508E / WATSON AM308 CODICE COLORI MICROFONI



GIALLO MIC

SCREEN EARTH (massa)

GRIGIO PTT (+ VOLTAGE FEED SU ADONIS D80)

BLU MASSA PTT EARTH SU WATSON 308

VIOLA MASSA PTT (ground)

VERDE MIC UP

ORANCIO COMMON (connesso a massa)

BIANCO MIC DOWN (+ VOLT WATSON AM-308)

NERO MIC DOWN SU WATSON AM-308

ROSSO + VOLT FEED(PTT SU ADONIS D80 E WATSON AM-308)





ALINCO

DMR610 DR-135 DR-435


  1. MIC
  2. PTT
  3. DOWN
  4. UP
  5. +5 VOLT
  6. REMOTE CONTROL
  7. SCREEN EARTH (massa)
  8. GND

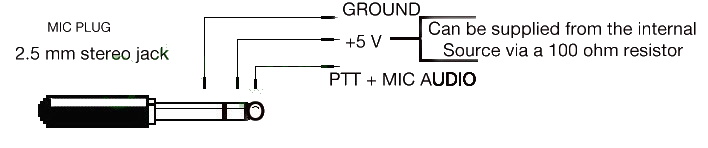

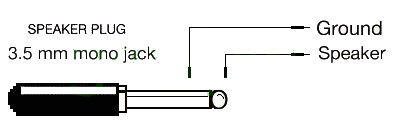

ALINCO

DJ-S11 DJ-41 DJ-180 DJ-190 DJ-191 DJ-491G DJ-596 DJ-G1 DJ-G5

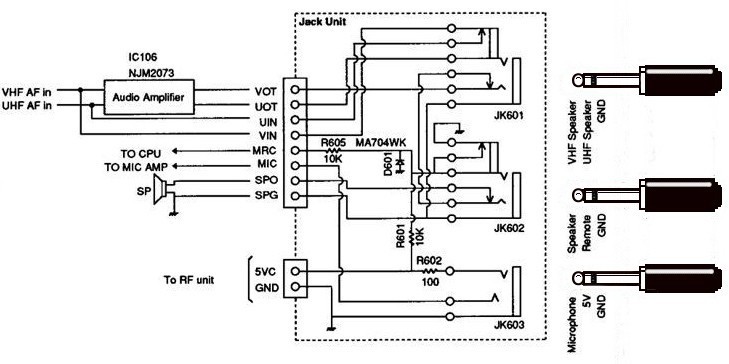

ALINCO DJ-560 DJ-580



ALINCO Portatili

DJ-V17 DJ-V17E DJ-V17T DJ-V17TFH DJ-47E DJ-47T DJ-47T1 DJ-47T2






ADONIS



ADONIS prolunga D-88K AS-327 (Collegamenti per Kenwood)



PLUG Argento

(all' RTX)



PLUG Arancio

(collegato al microfono)
PIN 1 GIALLO collegato al PIN 2.GIALLO (mic)
PIN 2 ROSSO collegato al PIN 3.ROSSO (ptt)
PIN 3 BIANCO collegato al PIN 6.BIANCO (down)
PIN 4 VERDE collegato al PIN 5.VERDE (up)
PIN 5 GRIGIO collegato al PIN 8.GRIGIO (+Volt DC feed)
PIN 6 N/C collegato al PIN 4.VIOLA (massa ptt)
PIN 7 SCHERMATURA collegato al PIN 1.SCHERMATURA (massa mic)
PIN 8 ARANCIO+VIOLA collegato al PIN 7.ARANCIO (massa comune up/down)


ADONIS LEAD prolunga D-80K AS-340
Questa prolunga è venduta separatamente solo con PLUG arancio



PLUG ARANCIO (collegato al microfono)

PIN 1.SCREEN (massa mic)
PIN 2.YELLOW (mic)
PIN 3.RED (ptt)
PIN 4.PURPLE (massa ptt)
PIN 5.GREEN (up)
PIN 6.WHITE (down)
PIN 7.ORANGE (massa comune up/down)
PIN 8.GREY (+volts DC feed)

COLORI E COLLEGAMENTI SUL PLUG ARANCIO DELLA PROLUNGA SONO IDENTICI






ADONIS codice colori



GIALLO (mic)

ROSSO (ptt)

BIANCO (down)

VERDE (up)

GRIGIO (+Volt DC feed)

VIOLA (massa ptt)

SCHERMO (massa mic)

ARANCIO (massa comune up/down)





CRT



CRT SS9900

  1. MIC BF
  2. UP/DOWN
  3. TX PTT
  4. NC
  5. MASSA
  6. NC





CRT SS7900 - CRT 2000

  1. NC
  2. NC
  3. NC
  4. NC
  5. MASSA
  6. MIC BF
  7. TX PTT
  8. NC





CRT MILLENIUM

  1.
  2. TX PTT
  3.
  4.
  5. MIC BF
  6. MASSA







ICOM


ICOM

IC-7300-IC9700-IC7400-IC746-IC746PRO-IC756PRO-IC7700-IC7800 (vedere HM-36)



  1. MIC + DC VOLT solo per microfoni ICOM
  2. +8 VOLT 10 mA per evitare di danneggiare il regolatore non cortocircuitare a massa
  3. UP/DOWN
  4. SQUELCH
  5. PTT
  6. GROUND
  7. MIC SCREEN/EARTH
  8. AUDIO OUT







ICOM

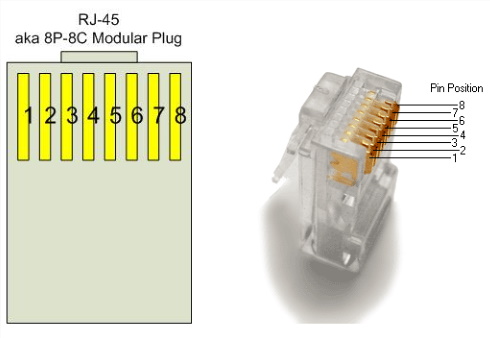

IC703-IC706MK1-IC706MK2-IC706MK3-IC2000-IC2000H (8 Pin Modular Plug)



  1. +8 VOLT
  2. UP/DOWN
  3. AUDIO OUT
  4. PTT
  5. MIC GROUND
  6. MIC
  7. GROUND/EARTH
  8. SQUELCH







ICOM

IC-E208-IC2100H-IC2200H-IC2725E-IC2820 (vedere HM-133, 8 Pin Modular Plug)


  1. +8 VOLT OUTPUT (10 mA max)
  2. UP/DOWN
  3. +8 VOLT IN (No connection IC2100H)
  4. PTT
  5. MIC GROUND
  6. MIC
  7. GROUND/EARTH
  8. DATA IN (No connection IC2100H)







ICOM IC-7000 (8 Pin Modular Plug)

IMPORTANTE vedere microfono HM-151


  1. +8 VOLT OUTPUT ( 10 ma max )
  2. UP/DOWN
  3. +8 VOLT SW
  4. PTT
  5. MIC GROUND
  6. MIC
  7. GROUND/EARTH
  8. DATA IN







ICOM IC-2800 (8 Pin Modular Plug ) SEE HM-98 MICROPHONE BELOW



  1. +8 VOLT OUTPUT (10 mA max)
  2. UP/DOWN
  3. +8 VOLT SW
  4. PTT
  5. MIC GROUND
  6. MIC
  7. GROUND/EARTH
  8. DATA IN







ICOM IC-2800 (8 Pin Modular Plug ) vedere microfono HM-98



  1. +8 VOLT OUTPUT (10 mA max)
  2. UP/DOWN
  3. +8 VOLT SW
  4. PTT
  5. MIC GROUND
  6. MIC
  7. GROUND/EARTH
  8. DATA IN







ICOM Civili (8 Pin Modular Plug) vedere microfoni SM-25, SM-100/T


F320-F420-F1020-F2020-F121-F221-F521-F620-F621/TR-F1721D-F182D-F272D
F282D-FR3000-FR4000-FR5000-FR5100-FR6100



  1. +8 VOLT
  2. UP/DOWN
  3. AF OUTPUT
  4. PTT
  5. MIC GROUND
  6. MIC AUDIO
  7. GROUND/EARTH
  8. SQUELCH (alcuni modelli)







ICOM Civili (8 Pin Modular Plug) vedere SM-26


IC-F300-IC-F510-IC-F1000-IC-F1600

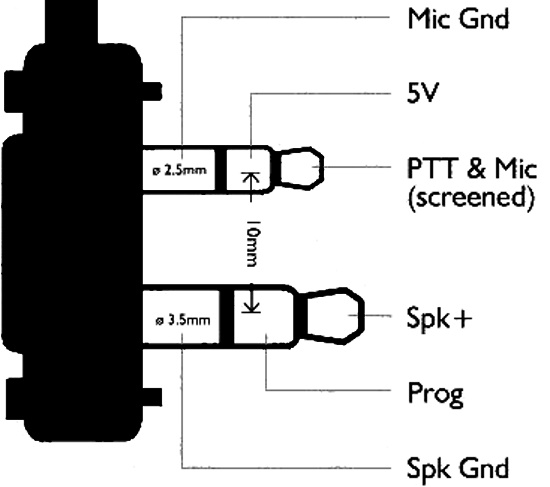

ICOM Portatili

ICE90- IC91A/E- ICE7- ICT2A/E/H-ICT3H ICT7A/E/H- ICT21A/E -ICT22 -ICT41E- ICT81A/E- ICV8- ICV21AT- ICV82
ICV82- ICT90- ICF3

(vedere HM-46, HM75A, HM-131)





ICOM Portatli

IC4A/AT/E-IC3A/AT-IC12A/AT/E-IC80AD

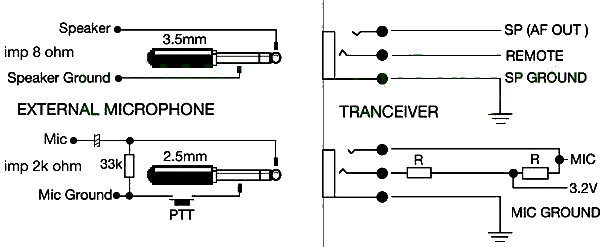

ICOM Portatili

ICT8A, ICT8E





ICOM

IC-211 IC-701



  1. MIC
  2. PTT
  3. N/C
  4. GROUND







ICOM

IC-120-271A-271E-275-290-228-229-229H-22U-25-25E-27-27E-28-29E-255-260-290-2400-2500-3200-3210-3220
IC-37A-38A-375-45-47-77-78-451-471A-475-48-490-505-551-560-575-707-718-720-725-726-728-729-730-735-736-737/A-738
IC-740-745-746-751/A-756/PRO-761-765-775-781-820H-821-821H-900-901-901H-910X-970-1200-1201-1271-1275



  1. MIC (giallo)
  2. REPEATER TONE (+ 8/9 Volt alcuni modelli)
  3. UP/DOWN
  4. N/C (squelch alcuni modelli)
  5. PTT (rosso)
  6. EARTH (nero)
  7. MIC SCREEN
  8. N/C (verde) (altoparlante esterno alcuni modelli)


(per IC-27 / 27E vedere IC-HM24) (IC-22U vedere IC-HM8)






ICOM

IC-7200-IC-7600


  1. MIC
  2. +8 Volt
  3. UP/DOWN
  4. squelch
  5. PTT
  6. PTT EARTH
  7. MIC SCREEN
  8. AUDIO OUT


(vedere SM-30, SM-50)

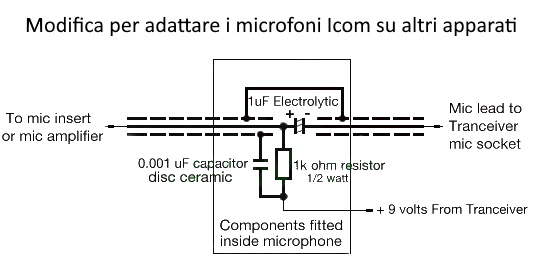

ICOM

IC24G-IC251E-IC451E (vedere SM-5 plus IC-HM7 hand mic & SM-5 desc mic)


  1. MIC (bianco connection at +9 VOLT above earth)
  2. NC
  3. NC
  4. NC
  5. PTT (rosso)
  6. PTT (nero)
  7. MIC SCREEN
  8. NC









MODELLI DI MICROFONI

IC-SM8 IC-SM6 IC-HM7 IC-HM11 IC-HM12 IC-HM14 IC-HM15 IC-HM22 IC-HM24 IC-HM36






INTEK


INTEK MULTICOM-3230

  1.
  2. TX PTT
  3. RX
  4. MASSA
  5. MIC BF





INTEK M-340 / FM-680

  1. MIC BF
  2. TX PTT
  3. NC
  4. MASSA
  5. RX







INTEK M-4035S

  1. MASSA
  2. NC
  3. TX PTT
  4. BF MIC
  5. RX




INTEK MB30 / MB40 / MB45 / MB485

  1. MIC BF
  2. RX
  3. TX PTT
  4. UP/DOWN
  5. MASSA
  6. NC

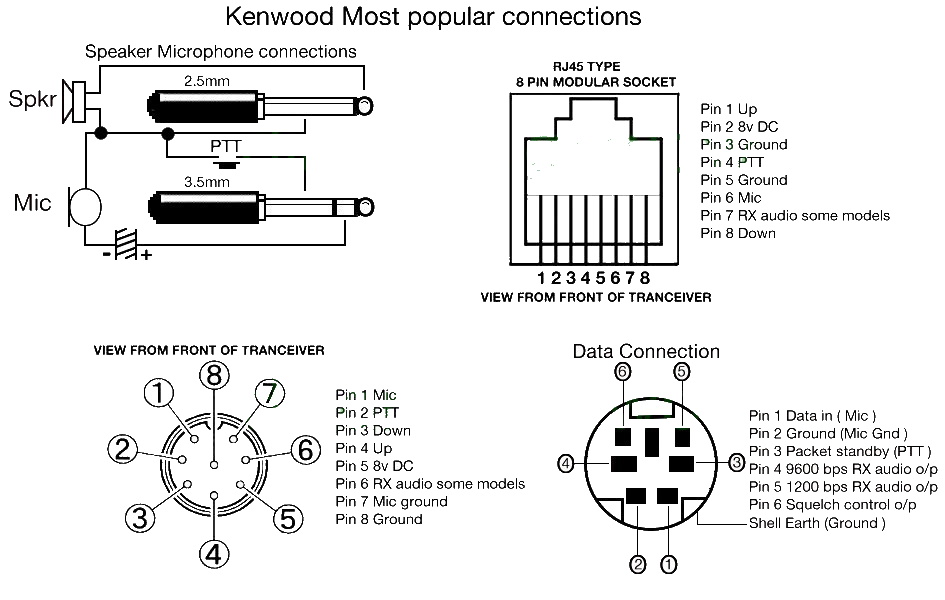

TRIO/KENWOOD

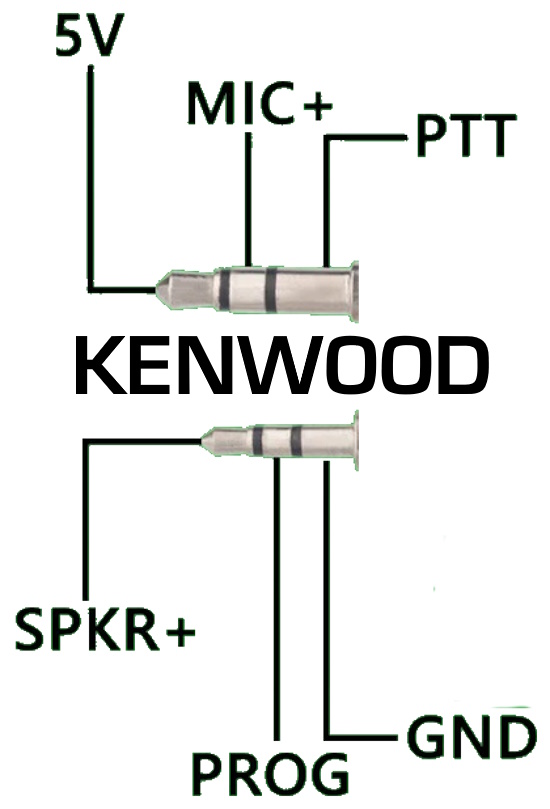

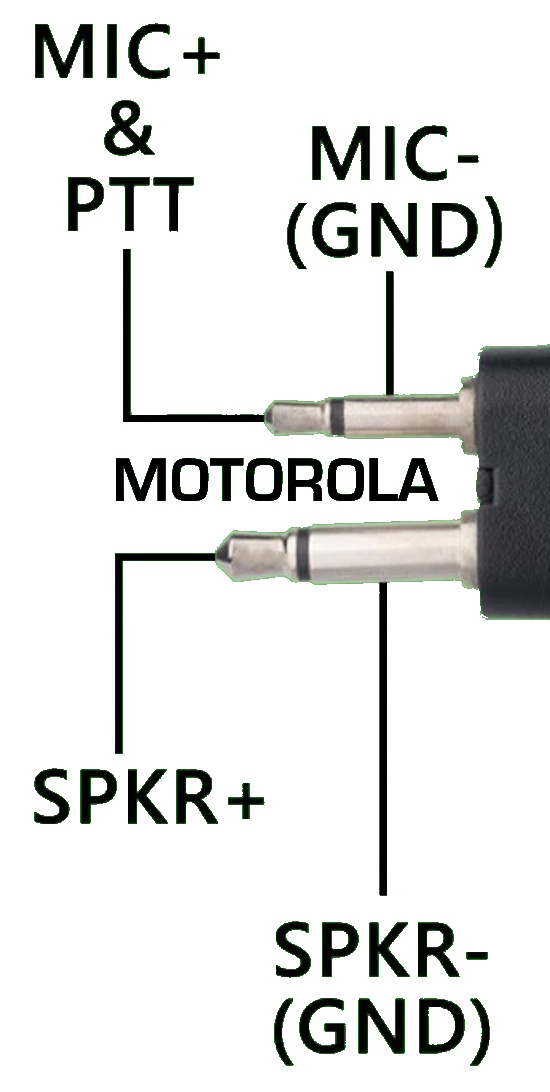

KENWOOD Portatili

TH-22A/AE TH-28/AE TH-42A/AE TH-48/AE TH-78A/E TH-F6 TH-F7 TH-F7E THG-71 TH-D7A/E
TH-K2AT TH-K2E TH-K4E TH-K4AT TH-235 UBZ-LJ8BE UBZ-LJ8SLE UBZ-LJ8YE VBZ-LH14 VBZ-LF AR-14 GR-14
(vedere SMC-32, SMC-33, SMC-34)

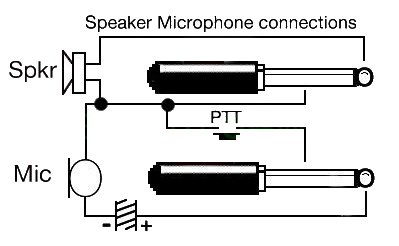

KENWOOD Portatili

TR-2500 TR-2600



(vedere SMC-25, SMC-30)





KENWOOD

T599S-TS120S-120V-700G-700S-130S-130V-490-520S-530S-820S-830S
TR2300-TR2200-TR2200GX-TR3200-TR7010-TR7200-TR7200G-TR7400A-TR7500-TR7600-TR7625


  1. MIC
  2. PTT
  3. MASSA PTT
  4. SCREEN AND EARTH







7 PIN REMOTE PLUG/SOCKET

KENWOOD

TS120-130-140-180-430-440-450-530-570-680-690-830-870-940-950


  1. SPEAKER OUT
  2. RELAY COMMON GROUND/EARTH
  3. PTT FOR FOOT SWITCH
  4. RELAY CLOSED ON TRANSMIT
  5. RELAY OPEN ON TRANSMIT
  6. ALC INPUT
  7. +12 VOLT ON TRANSMIT (10 mA Max)

PLUG SHELL EARTH





6 PIN ACC PLUG/SOCKET

KENWOOD

TS-450-690-570-850-870-950


  1. SIGNAL GROUND/EARTH
  2. TRANSMIT DATA
  3. RECEIVE DATA
  4. CTS ENABLE TX
  5. RTS ENABLE RX
  6. N/C

SHELL EARTH





13 PIN ACC2 PLUG

KENWOOD

TS440-450-680-690-570-711-790-811-850-870-940-950


  1. N/C
  2. N/C
  3. RX AUDIO OUT
  4. SCREEN FOR PIN3
  5. SQUELCH CONTROL OR N/C
  6. S/METER OUTPUT
  7. N/C
  8. CHASSIS/GROUND
  9. PTT- STANDARD MIC INPUT IS MUTED
  10. N/C
  11. MIC INPUT
  12. SCREEN FOR PIN 11
  13. PTT - STANDARD MIC INPUT IS ACTIVE

SHELL EARTH





KENWOOD

TR9000-9030-9130-9300-9500-7700-7730-7750-7800-7850-7930-7950-8400


  1. MIC
  2. PTT
  3. DOWN
  4. UP
  5. NC + 8 VOLT ALCUNI MODELLI
  6. CENTER EARTH







KENWOOD

TR7600-TR7625


  1. MIC
  2. PTT
  3. N/C
  4. CHASSIS/GROUND
  5. MASSA MIC







KENWOOD TS480 (8 Pin modular Plug)


  1. DOWN
  2. N.C.
  3. MIC
  4. MIC GND
  5. PTT
  6. GND
  7. +8 VOLT
  8. UP





Attenzione

Some errors in the TS-480 schematics leading to RF feedback when using other than the stock microphone have been noted by Kenwood





KENWOOD

TS-50-60-140-430-440-450-570-660-670-780-930-430-670-711 TS-811-850-870-930-940-950-440-701-790-680-690-TS-2000
TR-3200-7900-7950-50-751-851
TM-201A-201B-401A-TM401B-211-221-231-241-321-331-3530-421-431-441-521-531-541
TM-621-631-701-721-731-2530-2550-2570
TW4000-4100


  1. MIC
  2. PTT
  3. DOWN
  4. UP
  5. +8 VOLT alcuni modelli (10 mA)
  6. N/C alcuni modelli
  7. MASSA MIC
  8. MASSA (STBY)







KENWOOD

TM-251-255-261-271-271E-451-455-461-641-642-708-732-733-741-742-941-942 (8 Pin modular Plug)
TMG-707 TMD-700 TMD700A TMV-71A.TMV-71E-V7A

KENWOOD Civili

TK-90-7108HM-7108M-7160E-7160HM-7160M-7162E-7180E-7189E
8108HM-8108M-8160E-8160M-8162E-8180E-8189-TK90 (vedere KMC-30/32/35)


  1. DOWN
  2. N.C. RX AUDIO (alcuni modelli)
  3. MIC
  4. MIC GND
  5. PTT
  6. GND
  7. +8 VOLT (100 mA max)
  8. UP







KENWOOD TM-271A (8 Pin modular Plug)


  1. KEYPAD SERIAL DATA
  2. N.C.
  3. MIC (impedenza 600 Ohm)
  4. MIC GND
  5. PTT
  6. GND
  7. +8 VOLT (100 mA max)
  8. N.C.





MIDLAND


MIDLAND ALAN 34/44/48/68

  1. MIC
  2. MASSA
  3. RX
  4. TX PTT

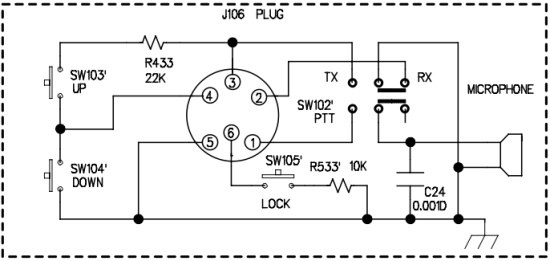

MIDLAND ALAN 48/78 PLUS

  1. MIC
  2. RX
  3. TX PTT
  4. UP/DOWN
  5. MASSA
  6. LOCK







MIDLAND ALAN 100 PLUS/199

  1. MASSA
  2. NC
  3. TX PTT
  4. MIC BF
  5. RX





MIDLAND ALAN 80

  1. MIC BF
  2. TX PTT
  3. NC
  4. MASSA
  5. RX



PRESIDENT


PRESIDENT JACKSON/GRANT OLD

  1. MASSA
  2. MIC
  3. TX PTT
  4. RX

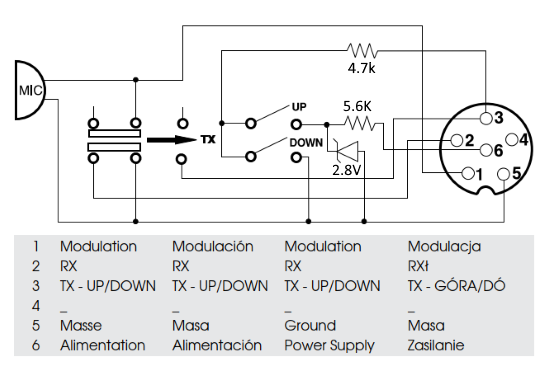

PRESIDENT MC KINLEY/LINCOLN II/GEORGE/NEW JACKSON

  1. MIC BF
  2. RX
  3. TX PTT
  4. NC
  5. MASSA
  6. +DC







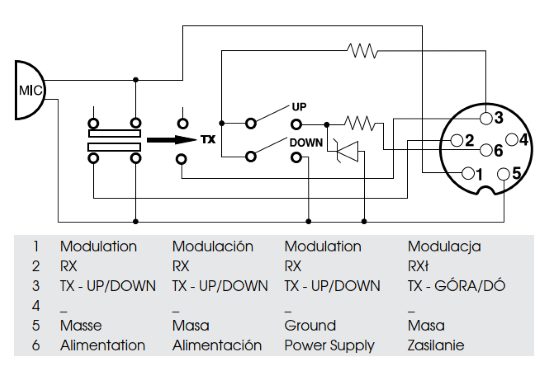

PRESIDENT LINCOLN

  1. MIC BF
  2. MASSA
  3. TX PTT
  4. UP
  5. DOWN





RANGER



RANGER RCI2950/2970/2990

  1. MASSA
  2. MIC BF
  3. TX PTT
  4. SHIFT
  5. UP
  6. DOWN





YAESU

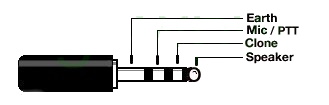

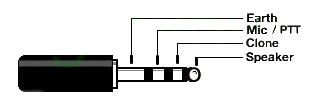

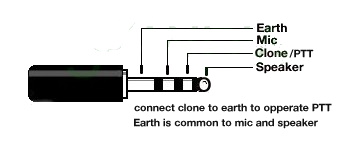

YAESU Portatili

VX-1R VXF-1 VX-2R VX-2E VX-3R VX-5R VX-7R VX-10 VXF-10 VX-110
VX-130 VX-131 VX-132 VX-150 VX-160 VX-180 VX-210 VX-210A VX-300 VX-400 VX-410 VX-420

    (vedere MH-34 / MH-34B4 / MH-57A4B)





YAESU Aeronautici

VXA-100 VXA-150 VXA-210

    (vedere MH-44A4B)





YAESU Fissi

FTC-1023 FTC-1024 FTC-1043 FTC-1044

(vedere MD-2H8)






YAESU Portatili

FT-10R FT-40R FT-50R FT-60R

     (vedere MH-37A4B)

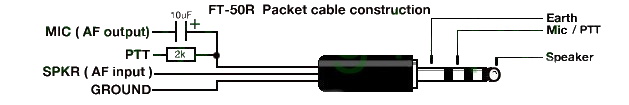

YAESU FT-50R FT-60R

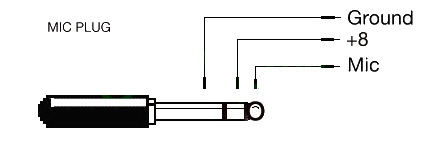

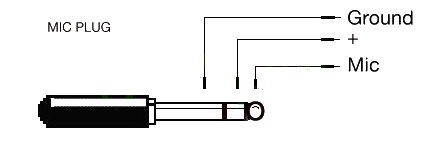

YAESU Portatili

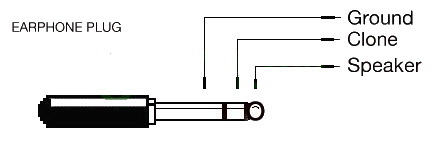

FT-51R (vedere MH-32A2B / MH-34C2)

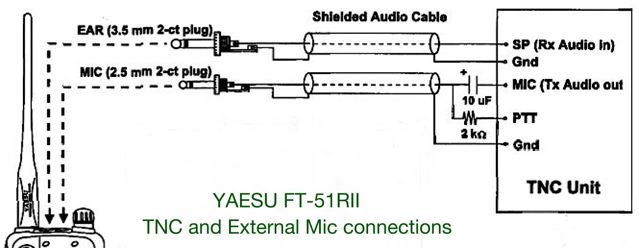

YAESU Portatili

FT-51RII

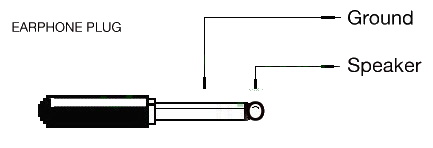

YAESU Portatili

FT-470 FT-411 FT-811 FT-911 (vedere MH-32A2B / MH-34C2)





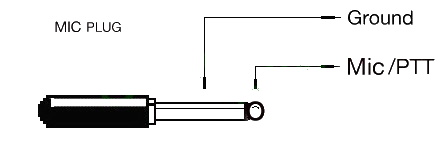

YAESU Portatili

FT-23 FT-73 FT-23RII FT-73RII (vedere MH-32A2B / MH-34C2)





YAESU Portatili

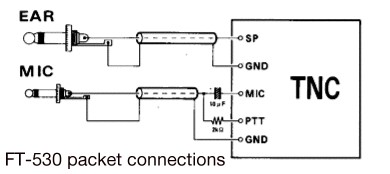

FT-530 (vedere MH-12A2B / MH-18A2B)







YAESU Civili


VX-2000 VX-2500 VX-3000 VX-3200 VX-4100 VX-4100E VX-4200 VX-4200E VXR-1000 VXR-7000



  1. DOWN
  2. UP
  3. + 5 VOLT
  4. MASSA MIC
  5. MIC
  6. PTT
  7. GROUND
  8. FAST






YAESU Civili (MH-67A8J)


VX-2200



  1. DUMMY (BIANCO)
  2. N.C.
  3. + 5 VOLT (AZZURRO)
  4. MASSA MIC
  5. MIC (GIALLO)
  6. PTT (ROSSO)
  7. N.C.
  8. HANG (NERO)








YAESU

FT736-FT747GX-FT757GX-FT650-FT655-FT840-FT890-FT920-FT990-FT990D-FT847
FT1000-FT1000D-FT1000MP + MKV -FT2000


  1. MIC UP
  2. EARTH (+5 VOLT FT847-FT920-FT1000MP-FT2000)
  3. DOWN
  4. FAST SCAN
  5. EARTH
  6. PTT
  7. SCREEN/EARTH
  8. MIC





YAESU

FT-ONE-FT77-FT102-FT707-FT767-FT767GX-FT980



  1. MIC UP
  2. +5 VOLT
  3. DOWN
  4. FAST SCAN
  5. CAUTION INTERCONNECTED TO PIN 2 (+5 VOLT)
  6. PTT
  7. SCREEN/EARTH
  8. MIC





YAESU

FT480R-FT780R (vedere YM-40)


  1. verde MIC UP
  2. giallo EARTH / COMMON U/DOWN
  3. blu DOWN
  4. marrone TONE CALL / LOCK
  5. arancio EARTH TONE CALL / LOCK
  6. rosso PTT
  7. nero SCREEN/EARTH
  8. bianco MIC





YAESU

FT726 (vedere MD1-B8, MH1-B8)


  1. UP
  2. COMUNE UP/DOWN
  3. DOWN
  4. FAST SCAN
  5. EARTH
  6. PTT
  7. SCREEN/EARTH
  8. MIC






YAESU CPU2500R-CPU2500RK

SOMMERKAMP FT227 (vedere YM-2500)


  1. UP
  2. COMUNE UP/DOWN
  3. DOWN
  4. PTT
  5. MASSA MIC/PTT
  6. MIC






YAESU FT-620B (vedere YM-86)


  1. N/C
  2. N/C
  3. SCREEN
  4. MASSA PTT
  5. PTT
  6. MIC






YAESU

FT75-FT221R-FT223-FT101B-FT101E-FT101Z-FT101ZD-FT301D-FT902-FT902DM (vedere YD148/YD844)


  1. MIC SCREEN/EARTH (PTT EARTH ON FT101B/101E.FT101Z/101ZD.FT902/902DM)
  2. MIC
  3. PTT
  4. EARTH ON FT221R (N/C ON FT101Z/101ZD.FT101B/101E.FT902/902DM)





YAESU

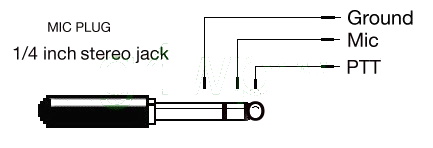

FTDX-100 FTDX-400 FTDX-401 FTDX-560 FT-200 FT-250 (vedere YD-148)




YAESU

FT201-FT125C-FTC212-FT2B-FT300C-FT224-FT225RD-FT2FB-FT223-FT220-FTC212-FT300C FT301
FT7-FT227R-FT227RA-FT227RX-FT250-FT401B-FT501-FT625-FL101

(Vedere YD-148 e YM-22)




YAESU FT950



  1. MIC UP
  2. +5 VOLT
  3. DOWN
  4. FAST SCAN
  5. GROUND
  6. PTT
  7. SCREEN/EARTH
  8. MIC






YAESU FT840-FT990


  1. UP
  2. GROUND
  3. DOWN
  4. FAST
  5. GROUND (INTERCONNECTED ON TRANCEIVER TO PIN 2)
  6. PTT
  7. MIC GROUND/SCREEN
  8. MIC







YAESU FT2200


  1. UP
  2. +5 VOLT
  3. DOWN
  4. SPEAKER
  5. ACC
  6. PTT
  7. MIC GROUND/SCREEN
  8. MIC







YAESU FT2500M
8 Pin Modular plug (vedere MH-26G8J, MH-27G8J)



  1. DOWN
  2. UP
  3. +5 VOLT
  4. MASSA
  5. MIC
  6. PTT
  7. RX AUDIO
  8. CALL







YAESU FT2400H


  1. DOWN
  2. UP
  3. +5 VOLT
  4. MASSA
  5. MIC
  6. PTT
  7. RX AUDIO
  8. CALL

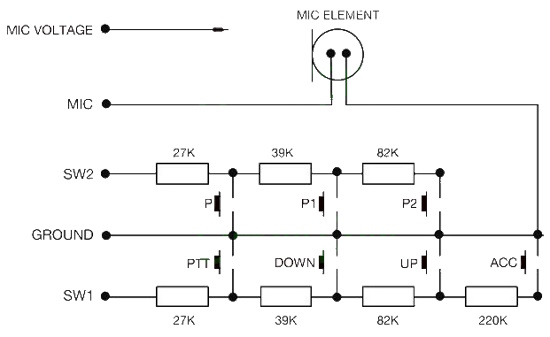

YAESU FT-2600 (6 Pin modular Plug, vedere MH-42 e MH-36)


  1. MULTI SWITCHING SW1
  2. MIC
  3. MASSA
  4. +9 VOLT
  5. CLONE
  6. SW2







YAESU FT-8500 (6 Pin modular Plug, vedere YM-39)


  1. POWER SWITCH
  2. MICROFONO
  3. MASSA
  4. +9 VOLT
  5. MASSA
  6. D11







YAESU FT5100


  1. UP
  2. +5 VOLT
  3. DOWN
  4. SPEAKER
  5. BAND
  6. PTT
  7. EARTH
  8. MIC







YAESU

FT211-FT212R FT212RH-FT270-FT211RH-FT711-FT712-FT770-FT2311-FT2700-FT4700RH-FT711RH-FT770RH
(vedere MH-15D8/ MH-15C8/ MH-14A8/ MH-14B8/ MH-14D8)


  1. UP
  2. +5 VOLT
  3. DOWN
  4. SPEAKER
  5. CPU / TONE SW
  6. PTT
  7. MASSA
  8. MIC







YAESU

FT230R-FT290R-FT690 FT730-FT790R


  1. MIC SCREEN/EARTH
  2. MIC
  3. PTT
  4. +12 VOLT (+5 VOLT FT730-FT290R)
  5. SPEAKER
  6. UP
  7. DOWN





YAESU

FT290RII-FT690RII-FT790RII (vedere MH-10E8, MH-10F8)



  1. UP
  2. +5 VOLT
  3. DOWN
  4. SPEAKER
  5. N/C
  6. PTT
  7. MASSA
  8. MIC







YAESU

FT215-FT715-FT3700-FT3800-FT3900-FT4600-FT4800-FT4900-FT5800


  1. UP
  2. +5 VOLT
  3. DOWN
  4. N/C
  5. RECALL
  6. RESET
  7. MASSA
  8. MIC







YAESU

FT708R-FT208R HAND HELD (mini) 6 PIN


  1. MIC (bianco)
  2. SPEAKER (nero)
  3. PTT (rosso)
  4. massa MIC
  5. NC
  6. SPEAKER (blu)





YAESU

FTDX10-FT710-FT897-FT857-FT817-FT900-FT450 (8 pin Modular Plug)


  1. DOWN
  2. UP
  3. +5 VOLT
  4. MASSA MIC
  5. MIC
  6. PTT
  7. MASSA
  8. FAST SCAN







YAESU

FT1500M-FT1802E-FT2800-FT7800M-FT8800E-FT8900R (6 Pin modular Plug, vedere MH-48)


  1. PTT (blu) (clone FT1802E)
  2. MIC (bianco)
  3. MASSA (schermatura)
  4. + 8 VOLT (rosso)
  5. SW1 (marrone)
  6. SW2 (verde)







YAESU FTM-350AR (6 Pin modular Plug, vedere MH-48A6J)


  1. PTT (blu) (clone FT1802E)
  2. MIC (bianco)
  3. MASSA (schermatura)
  4. +8 VOLT (rosso)
  5. SW1 (marrone)
  6. SW2 (verde)







YAESU

FTM-10R/E (WITH BUILT IN MICROPHONE AND BLUETOOTH)

NEEDS MEK-M10 ADAPTER TO USE THE FOLLOWING EXTERNAL MICROPHONES



MH-68 A6J WATERPROOF MIC

MH-68 B6J WATERPROOF MIC




YAESU

FTDX9000D (3 pin XLR Plug pannello frontale) PLUS (8 pin Plug pannello posteriore)



(XLR PLUG pannello anteriore)
  1. PIN1 MIC GRND
  2. PIN2 MIC HOT
  3. PIN3 MIC COLD





(8 PIN PLUG pannello posteriore)



  1. UP
  2. +5 VOLT
  3. DOWN
  4. FAST SCAN
  5. MASSA
  6. PTT
  7. MASSA MIC
  8. MIC






YAESU

FT100-FT90-FT8100 (6 pin Modular Plug, vedere MH-36)


  1. SW1,PTT,UP,DOWN,Acc
  2. MIC
  3. MASSA
  4. +9 VOLT
  5. N.C. 9600bps packet data out FT-90
  6. Multi-function switching for P,P1,P2 SW2

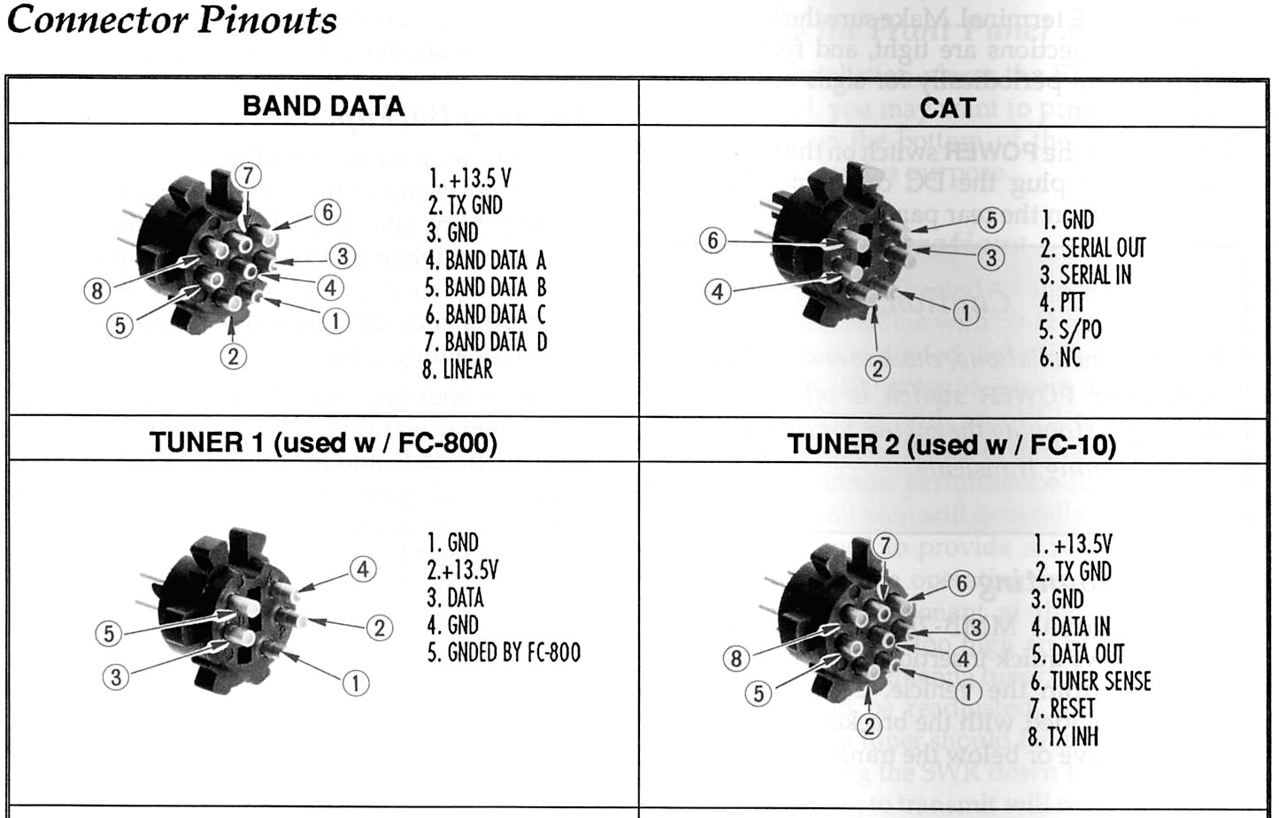

Presa CAT





Questo sito è copyright © FLQ ELETTRONICA - Partita IVA IT01728980598

Tutti i prezzi sono da intendersi IVA inclusa
