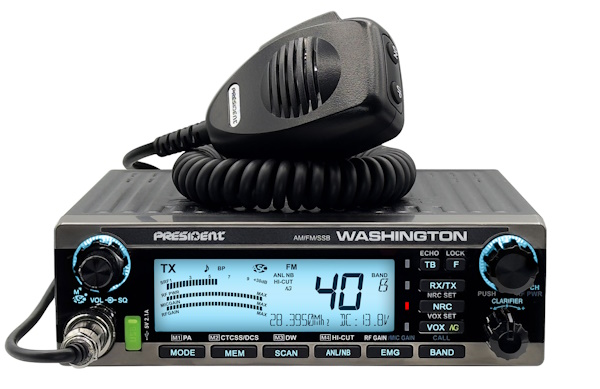

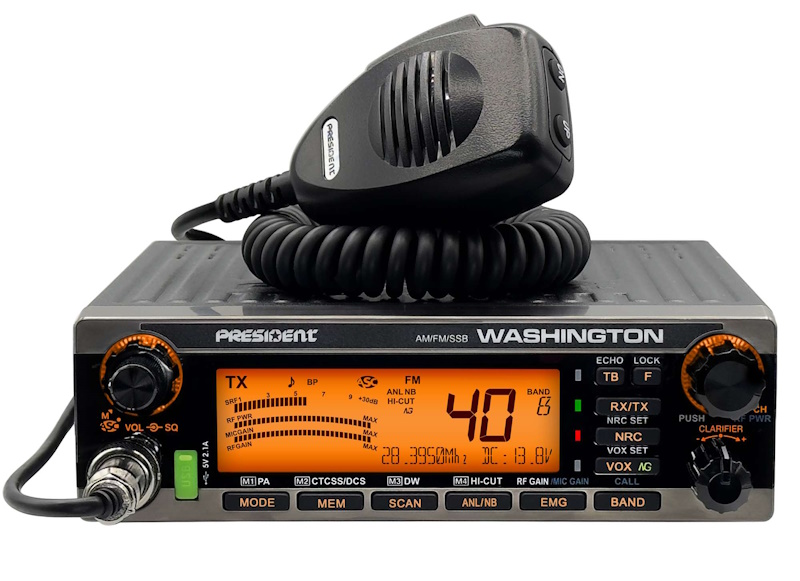

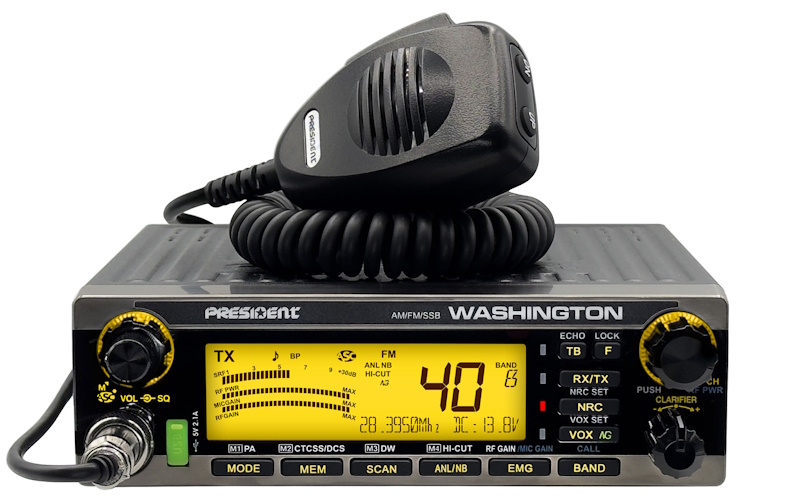

President Washington
apparato 10 metri espandibile anche in 11 e 12 metri all mode**
alta potenza RF: 70 Watt AM/SSB e 50 Watt FM
possibilità di installare un kit ventole (opzionale)
versione export 24.715 - 30.105 Mhz
| Frequency allowance |
± 200 Hz |
| Carrier power |
70 W PEP (AM/USB/LSB) / 50 W (FM) |
| Power limitation |
4/10W |
| APM |
|
| Transmission interference |
< 4 nW (-54 dBm) |
| Audio response |
300 Hz to 3 kHz |
| Emitted power in the adj. channel |
< 20 μW |
| Microphone sensitivity |
3 mV |
| Drain |
6 A (with modulation) |
| Modulated signal distortion |
2% |
| Max. sensitivity at 20 dB sinad |
0.7 µV - 110 dBm (AM) / 0.35 µV - 116 dBm (FM) / 0.28 µV - 118 dBm (USB/LSB/CW) |
| Frequency response |
300 Hz to 3 kHz |
| Adjacent channel selectivity |
60 dB |
| Maximum audio power |
3 W |
| Squelch sensitivity |
min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm |
| Frequency image rejection rate |
60 dB |
| Intermediate frequency rej. rate |
70 dB |
| Drain |
400 mA nominal / 600 mA max. |
| Size (mm) |
170 (W) x 250 (D) x 52 (H) |
| Weight |
1,4 kg |
| Accessories supplied |
1 microphone UP/DOWN and its hanger , 1 mounting bracket with fixing screws , power cord with fuse |
| Antenna socket |
SO-239 |
| Antenna impedance |
50 Ohm |
| Multiconfiguration |
EU / U / D / PL / IN |
| Frequency ranges |
from 24.890 Mhz to 24.990 Mhz and from 28.000 Mhz to 29.700 Mhz (continuous scanning) ** |
| Power supply |
Nominal 13.8V DC, negative ground (10.5 VDC to 16.0 VDC) |
| Microphone plug |
front (6 pins) |
| Compatible microphone type |
Electret , Dynamic |
| External Vox microphone jack |
|
| External loudspeaker jack |
|
| Public address |
|
| External HP PA socket |
|
| USB socket (front) |
5 V / 2,1 A |
| Display |
LCD multifunction |
| Dimmer |
|
| Frequencies display |
|
| Band name |
|
| VFO mode |
|
| S-meter |
Digital |
| Modulation modes |
AM / FM / USB / LSB |
| Volume adjustment and ON/OFF |
|
| Squelch |
Manual squelch |
| ASC |
|
| Channel selector |
Rotary |
| Mode switch |
|
| F / Menu function key |
|
| Automatic Relay |
|
| Key Beep |
Switchable |
| Roger beep |
Switchable , 6 tones |
| Key locking |
|
| Tone |
|
| Memory |
4 |
| Channel preselection |
2 , channel 9 & 19 , emergency channel (EMG) programmable |
| Span |
|
| Dual watch |
|
| Scan |
channels , memories |
| Scan Skip |
|
| RF Power |
|
| :RF Gain |
|
| Mike-Gain |
|
| Clarifier |
|
| Talkback |
|
| Vox |
|
| Automatic SWR meter |
|
| SWR (Power Reading /SWR) |
|
| Echo |
|
| CALL function |
|
| TOT |
|
| Filter ANL |
|
| Filter NB |
|
| Filter HI-CUT |
|
| NRC |
|
| Noise Gate |
|
| CTCSS |
38 tones |
| DCS |
104 codes |
| APM |
|
| Note |
Ventole (opzionali non incluse con la radio) |
|
