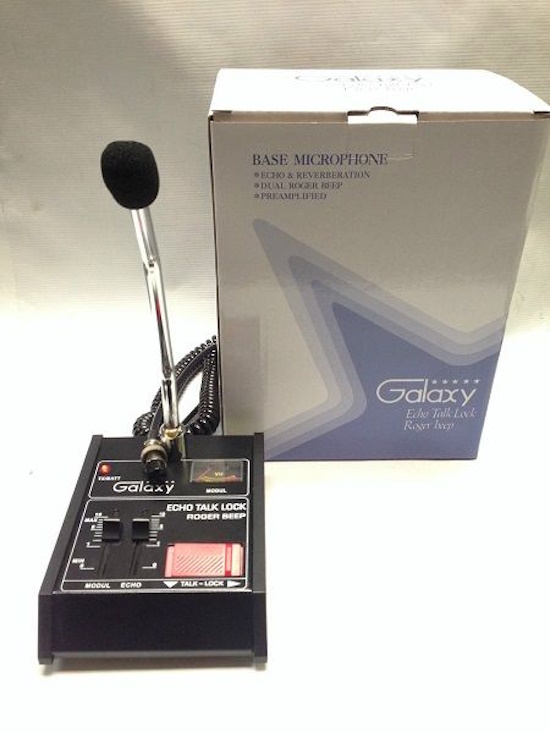

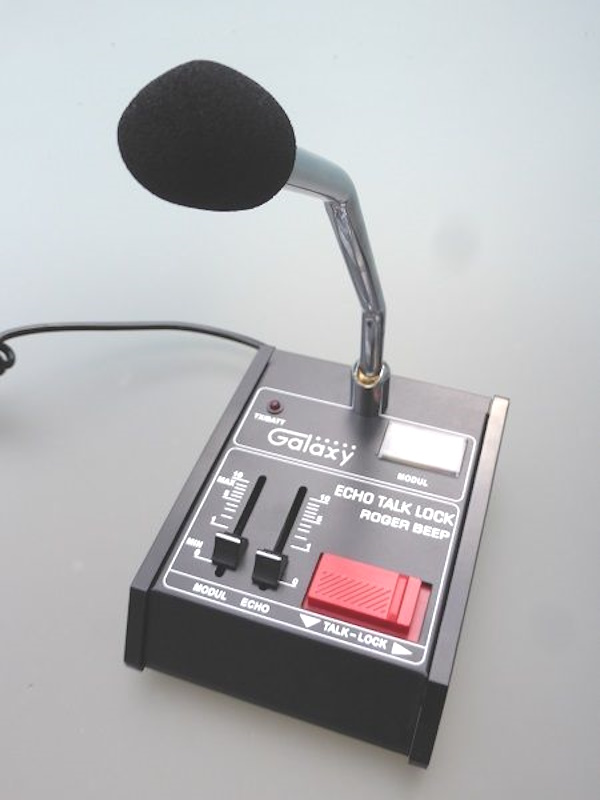

Galaxy Echo Master

Microfono da tavolo preamplificato con effetto echo regolabile e roger beep disinseribile

FEATURES, FUNCTIONS AND SPECIFICATIONS:

• Power Base Microphone
• Echo Time and Depth Control
• 1 VU-Meter
• Modulator Meter and TX LED
• Press to Talk with Lock
• Classic Echomaster Roger Beep
• Type of Microphone: Electret
• Sensitivity: -30 dB
• Output Level: From 0 Volt to 1.4 Volt
• Frequency Response: 200 - 300 Hz
• Output Impedance: 1K Ohm
• Load Impedance: 50 Ohm - 100K Ohm
• Roger Beep TX Time: 1.2 Sec. approx
• Current Drain: 8 mA (TX)
• Power Supply: One 9 Volt 6F22 alkaline battery
• Battery Life: Over 120 hours

PACKING INCLUDES:

• 1 Pc of ECHOMASTER

WIRING OF MIC CABLE:

• White = Audio
• Red = Transmit
• Yellow = Receive
• (Black = Receive)
• Shield = Ground
