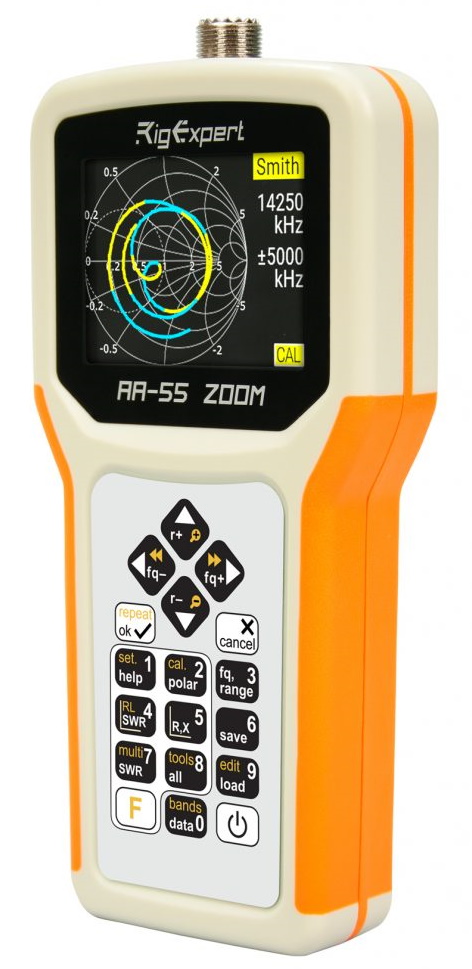

RigExpert AA-55 ZOOM

The analyzer is designed for measuring SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 60 kHz to 55 MHz.

A built-in ZOOM capability makes graphical measurements especially effective.

The following tasks are easily accomplished by using this analyzer:

• Rapid check-out of an antenna

• Tuning an antenna to resonance

• Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.)

• Making coaxial stubs or measuring their parameters

• Cable testing and fault location, measuring cable loss and characteristic impedance

• Measuring capacitance or inductance of reactive loads

Scarica manuale PDF

Frequency range: 0.06 to 55 MHz

Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600-Ohm systems

SWR measurement range: 1 to 100 in numerical modes,
1 to 10 in chart modes

SWR display: numerical or analog indicator

R and X range: 0…10000, -10000…10000 in numerical modes,
0…1000, -1000…1000 in chart modes

Display modes:
–    SWR at single or multiple frequencies
–    SWR, return loss, R, X, Z, L, C and phase angle at single frequency
–    SWR chart, 100 points
–    R, X chart, 100 points
–    Smith chart, 100 points
–    Return loss chart, 100 points
–    Cable tools (loss and characteristic impedance)

Optional open-short-load calibration.

Non Volatile memory:
– 10 slots to save measurement results

RF output:
–    Connector type: UHF (SO-239)
–    Output signal shape: square, 0.06 to 55 MHz
–    Output power: +13 dBm (at 50 Ohm load)

Power:
–    Two 1.5V alkaline batteries, type AA
–    Two 1.2V Ni-MH batteries, type AA *
–    Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
–    When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:
–    320×240 color TFT display
–    6×3 keys on the water-proof keypad
–    Multilingual menus and help screens
–    USB connection to a personal computer

Dimensions: 103 mm x 207 mm x 37 mm (4.1 in x 8.1 in x 1.4 in)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 310 g (10.9 Oz) w/o batteries

Warranty: 2 years

GTIN-13: 4820185420099

RigExpert AA-55 ZOOM is made in Ukraine.

Specifications are subject to change without notice.

* Batteries are not included with the analyzer.

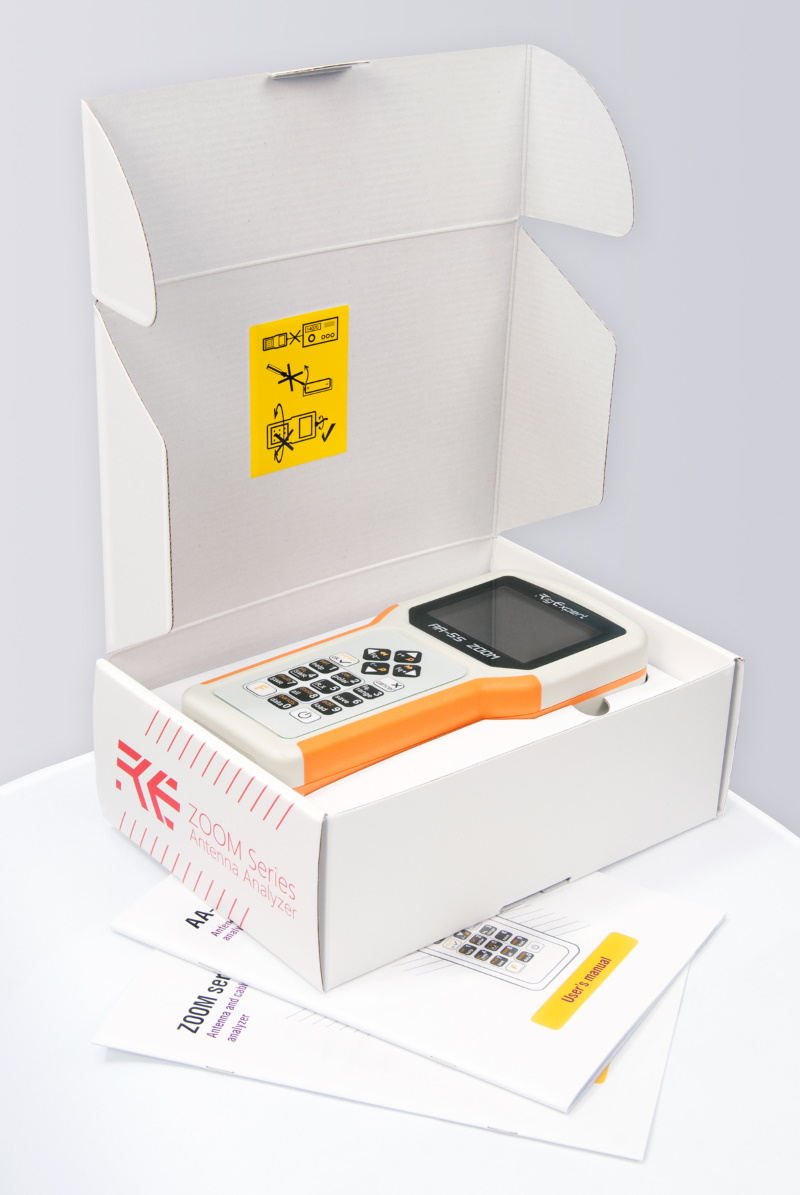

CONTENUTO CONFEZIONE:

• Analizzatore - RigExpert AA-55 ZOOM
• Cavo USB
• Custodia morbida
• Manuale utente in inglese
• Batterie alcaline
