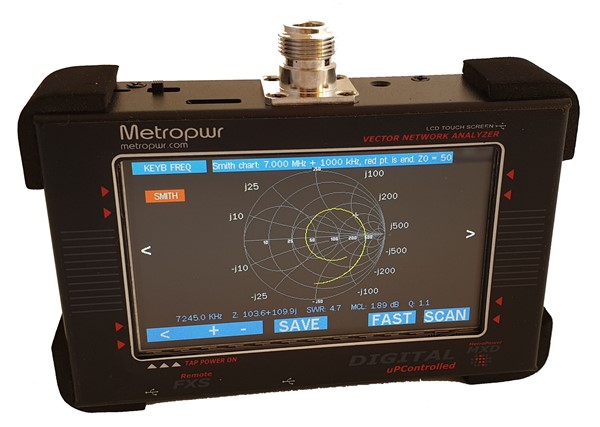

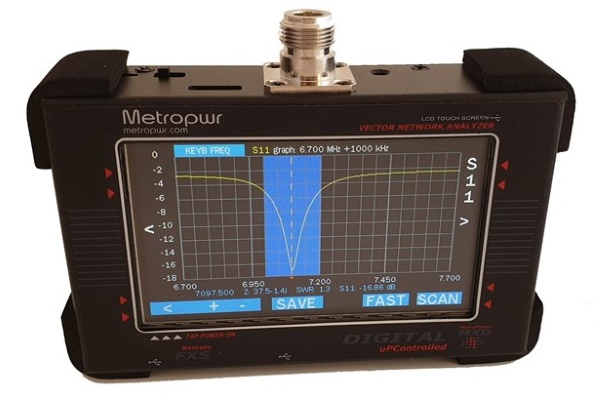

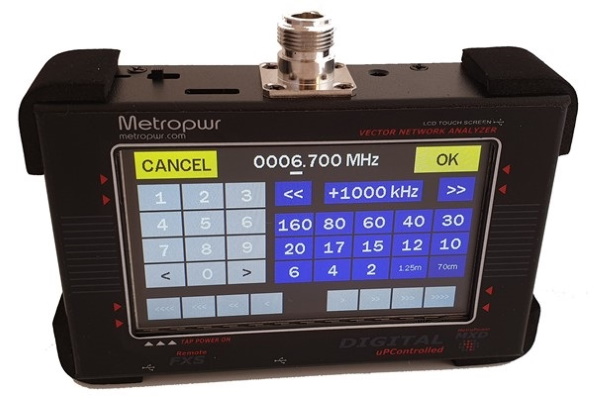

FX700 is a vector network analyzer 0.1/700 MHz used to measure all the parameters of an antenna. It has a large 4.3“ touch screen display and a very powerful 32 bit microprocessor that allows you to view graphics and smith diagrams. It can measure all the parameters R, Z, X, including the sign of the reactance. It can measure the length of coaxial cables and detect a fault on them. It can measure the length of coaxial cables and detect a fault on them a dedicated menu for measuring quartz parameters and a menu to measure multiband antennas. The main features:

• Measurament R, Z, X (sign), SWR, Phase, ReturnLoss, Tdr, L, C
• Smith chart
• TDR (time domain reflectometer )
• Cable length measurement
• Calibration OPEN,SHORT,LOAD (osl)

Scarica manuale italiano PDF

Metropwr FX700 Technical Features

•  Coverage 0.1 - 700 MHz
•  Display 4,3″ colori
•  Capacitive Touch screen
•  DUT Connector N
•  Measurament R, Z, X (sign), SWR, Phase, ReturnLoss, Tdr, L, C
•  Impedance 50,75,100,150,300 Ohm
•  Calibration OPEN,SHORT,LOAD (osl)
•  Smith chart , measure antenna multiband
•  TDR (time domain reflectometer )
•  Cable length measurement
•  Storage of graphics on the sd / bmp, png card
•  Export images via sd
•  Measure quartz parameters
•  Menu generator
•  Fast / accurate scan
•  Battery LI-ion included (2600 mA)
•  USB charging circuit
•  Firmware upgradabile via USB
•  3.7V operating voltage
•  Compact dimensions 135 x 32 x 85 mm
•  Weight 250 gr

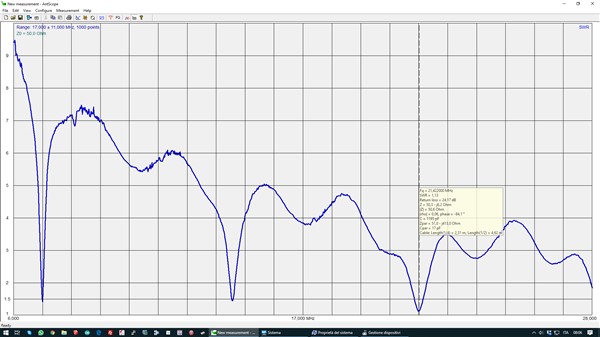

Fx700 can be connected to the PC through the USB port. It is possible to export measurements, graphics and even screen shots of the display. It is compatible with third-party software that runs on windows. It is possible to print the graphs or create a pdf file of the measurements.
