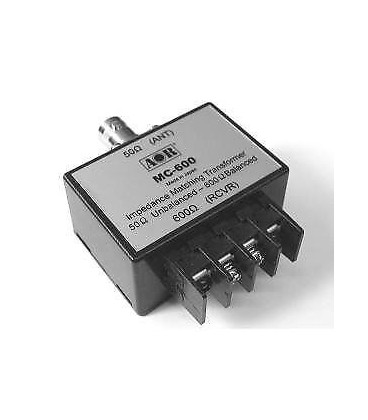

Transformer for matching the high impedance input and LA400 loop antenna, such as an antique radio
A signal that has been led by a coaxial cable
It is a product matching transformer circuit is incorporated to convert antique radio and radio tuner, such as the widely used to have for the balanced input of high impedance.
Power is not required for the operation.
In the range of 10kHz ~ 30MHz, it is fabricated so as to exhibit uniform characteristics.
Frequency range: 10 kHz ~ 30 MHz
Impedance: 50 Ω (non-equilibrium) / 600 Ω (equilibrium)
Connector: BNC-J / terminal block
Attached cable: parallel lines about 30 cm
Dimensions: 34 x 24 x 50 mm (not including protrusions)
Weight: about 42 g.
It is a receive-only.
|
