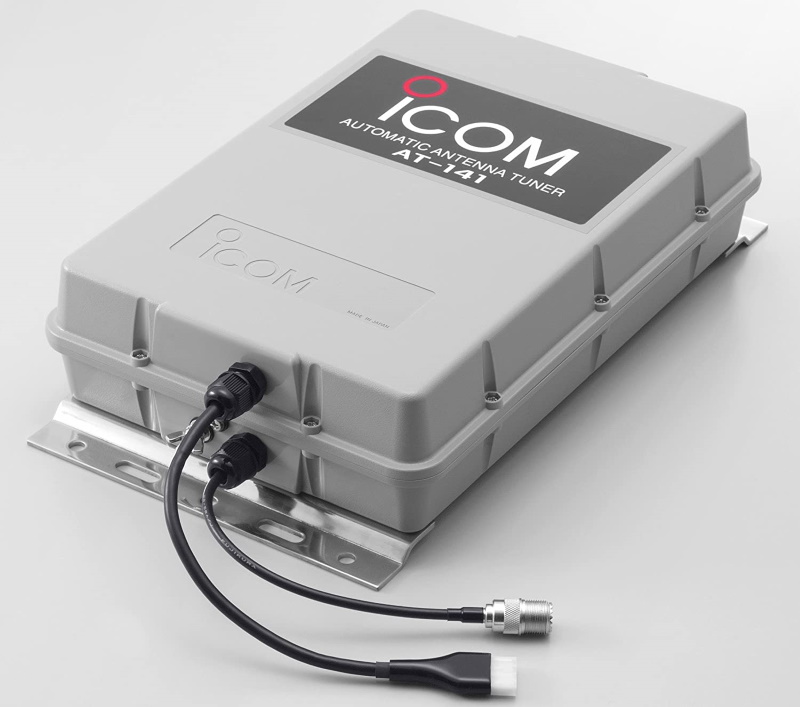

Icom AT-140 SSB Auto-Antenna Tuner
Designed for the Icom GM800 GMDSS and Icom M802 SSB Radio. Automatically By-passes Tuning to Improve Frequency Reception Completely Weather-Resistant Acrylic Case.
Scarica manuale PDF
Weather resistant
- The Icom AT-141 is housed in a durable, completely weather resistant ASA case, with a rubber gasket. The antenna tuner can be conveniently installed near the antenna element.
Matches all bands
- The Icom AT-141 matches all frequencies on the HF marine band. For example, the tuner matches a 7 m long-wire antenna across 1.6-30 MHz.
Full automatic tuning
- Just push the [TUNE] key on the transceiver, and the Icom AT-141 immediately tunes for a minimum SWR on any frequency in the HF marine band.
HF operation on any size ship
- The Icom AT-141 allows HF operation where antenna element length is restricted due to space.
45 memories for shorter tuning time
- To decrease the tune-up time, the Icom AT-141 automatically stores the matching conditions for up to 45 frequencies. Retuning a memorized frequency takes approximately 1 second.
Icom AT-141 is compatible with:
- Icom GM800 GMDSS MF/HF Marine Transceiver with Class A DSC
- Icom IC-M802 MF/HF Marine Transceiver
Marine version of AH-4 auto antenna tuner.
| Frequency coverage: |
1.6–30 MHz (with 7 m or longer antenna element) |
| Power supply requirement: |
13.6 V DC (supplied from the HF transceiver) |
| Current drain: |
Maximum 2 A |
| Operating temperature range: |
–30°C to +60°C |
| Weight (approximately): |
2.5 kg |
| Antenna connector: |
SO-239 (50 Ω) |
| Maximum Input power: |
150 W (PEP) 100 W (continuous) |
| Automatic tuning time: |
Approximately 2 to 3 seconds (general condition) Maximum 15 seconds
Approximately 1 second (returning for a memorized frequency) |
| Automatic tuning accuracy: |
SWR 2.0:1 (after tuning, except for multiples of 1⁄2 λ) |
| Usable pole diameter: |
32 to 60 mm All stated specifications are subject to change without notice or obligation |
|
