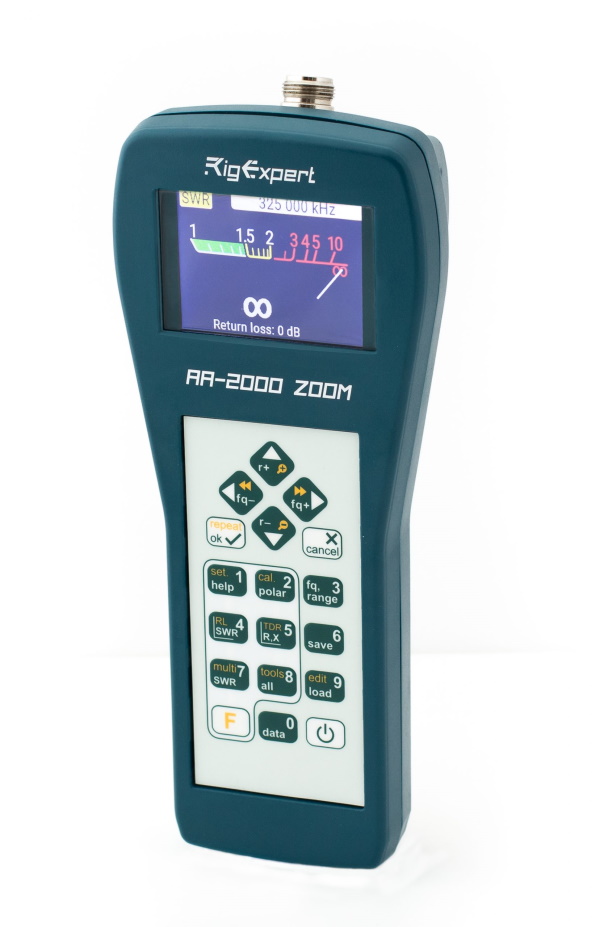

RigExpert AA-2000 ZOOM is powerful antenna analyzers designed for testing, checking, tuning or repairing antennas and antenna feedlines.

Graphical SWR (Standing Wave Ratio) and impedance, as well as Smith/polar chart displays are key features of these analyzers which significantly reduce the time required to adjust an antenna.

Easy-to use measurement modes, as well as additional features such as connection to a personal computer make RigExpert  AA-2000 ZOOM attractive for professionals and hobbyists.


The following tasks are easily accomplished by using these analyzers:


• Rapid check-out of an antenna

• Tuning an antenna to resonance

• Antenna SWR and impedance measurement and comparison before and after specific event (rain, hurricane, etc.)

• Making coaxial lines or measuring their parameters

• Cable testing and fault location

• Measuring capacitance or inductance of reactive loads

See also: A short review of antenna and network analyzers


See also: A short presentation of RigExpert Antenna Analyzers on YouTube.

MultiSWR mode - numerical values	MultiSWR mode - bars
"Show all" mode	SWR graph
R,X graph	Smith chart
Data at cursor screen	Save to memory screen

Frequency range: 0.1 to 2000 MHz

Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600-Ohm systems

SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes

R and X range: 0…2000, -2000…2000

Display modes: SWR, return loss, R, X, Z, L, C, Magnitude, and Phase Angle at a single frequency, SWR chart (100 points). SWR chart at fixed HAM bands by IARU Regions (100 points), Multé mode, Cable tools (Velocity factor measures, Cable length measurer, Stub tuner, Cable loss check), TDR

Optional open-short-load calibration in SWR, R, X, or Smith/polar chart graph modes.

RF output:
–    Connector type: N
–    Output signal shape: square, 0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used.
–    Output power: -10 dBm (at 50 Ohm load)

Power:
–    Three 1.2V, 1800…3000 mAh, Ni-MH batteries, type AA
–    Max. 3 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
–    When the analyzer is connected to a PC or a DC adapter with a USB socket, it takes power from these sources

Interface:
– 800*480 color BlanView display
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens ( English / German / French /Spanish / Portuguese / Italian / Japanese / Ukrainian / Russian)
– USB connection to a personal computer
– Bluetooth v. 4.2 (Single-mode, Class B)

Accessories inside the box: Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter

Dimensions: 23x10x5.5 cm (9x4x2”)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 650g (23 Oz)

Warranty: 2 years RigExpert Care

GTIN-13: 4820185420310

RigExpert AA-2000 ZOOM is made in Ukraine.

Specifications are subject to change without notice.
