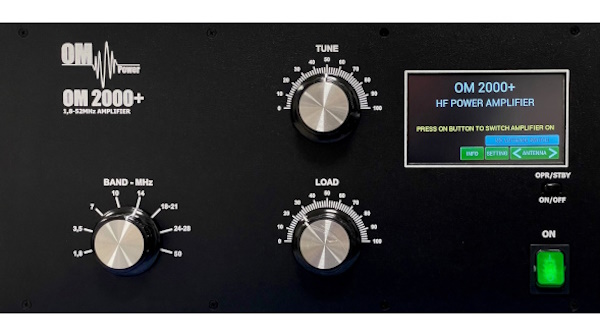

OM POWER OM2000+

ChiedereContattaci per maggiori informazioni Amplificatore HF e 50 Mhz valvolare con tetrodo ceramico FU-728F, potenza 2000 Watt HF 4.170,00 €   Tasse incluse - + OM POWER OM2000+ HF and 50 MHz Amplifier The OM Power model OM2000+ is designed for all shortwave amateur bands from 1.8 to 29.7 MHz (including WARC bands) + 50 MHz and all modes. It is equipped with a ceramic tetrode FU-728F               Specification of OM2000+: Frequency coverage: Amateur bands (1.8 – 29.7) MHz including WARC + 50 MHz Power output: 2000 W in SSB/CW on HF bands, 1500 W in CW/SSB on 50 MHz, 1200 W in RTTY and DIGI modes (800 W on 50 MHz) Input power: Usually 40 to 60 W for full output power (USA model), 20 to 30 W (World gain model) Input impedance: 50 ohm, VSWR < 1.5 : 1 Power Gain: 15 dB (USA model), 17 - 18 dB (World gain model) Output impedance: 50 ohm unbalanced Maximum output SWR: 3:1 SWR protection: Automatic switching to STBY when reflected power is 350 W or higher Intermodulation distortion: -32 dB below nominal output Suppression of harmonics: < -50 dBc on HF, < -70 dBc on 50 MHz Tube: 1x FU-728F ceramic tetrode Cooling: Centrifugal blower + axial blower (external) Power supply: Switchable 220/230/240 V - 50 Hz (230/240/250 V - 60 Hz for North America models) Transformers: 1x toroidal transformer 3 kVA Current max.: 20 A (recommended minimal IE 20 A circuit breaker) Protection circuits: - VSWR too high   - Anode current too high   - Anode voltage error   - Screen current too high   - Screen voltage error   - Grid current too high   - Grid voltage error   - Heating voltage error   - Mistuning of power amplifier   - Temperature to high   - Soft start for fuse protection   - "switch–on blocking" at opened amplifier Indications: - 4.3" color touch screen display Features: - High level of protections   - Memory for faults and warning, easy maintenance   - Automatic set-up anode current (BIAS) – no need to adjust manually after changing the tube   - Many operational parameters on display   - Full QSK with silent vacuum relay   - Easy transport due to detachable HV transformer Mechanical parameters: 390 mm x 195 mm x 370 mm (width x height x depth) Weight: 24 kg (53 lb) Lascia il tuo commento sul prodotto Commenti sul prodotto:  Nessun Commento...
