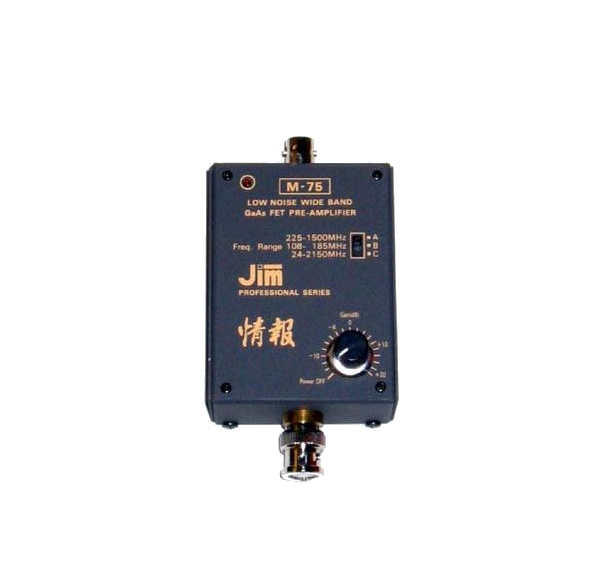

Preamplificatore a basso rumore a GaAs FET 24 MHz - 2150 MHz

SPECIFICATIONS:

• Frequency Range:

1. A Band 225 MHz - 1500 MHz
2. B Band 108 MHz - 185 MHz
3. C Band 24 MHz - 2150 MHz

• Gain: -10 dB to +20 dB Fully Adjustable
• Noise Figure: approx 2dB
• Input/Output Impedance: 50 Ohm
• Current Consumption: approx 45 mA (internal battery) or 40 mA (external 12 VDC)
• Power Source: 9 V Battery
• Temperature Range: -20 to +50 Degrees Celcius

Scarica manuale PDF

Warning 1:
A 9V rechargable NiCad or NiMH battery may be used to power the M-75 BUT it must be charged independently using a dedicated charger. It is not possible to charge the battery from the external 12V DC jack on the M-75.

Warning 2:
When using an external power supply with the batteries taken out it is advised to cover the battery snap contacts with a plastic tape or simular insulation so that is does not touch the metal casing causing a voltage drop.
When using an external power supply it is advised to install a 9V battery in the M-75.

PACKING INCLUDES:

• 1 Pc of M75.
• 1 Pc of Battery 9 Volt Alkaline.
• 1 Pc of User Manual in English.
